Custom Stainless Steel Spring for the Medical Industry

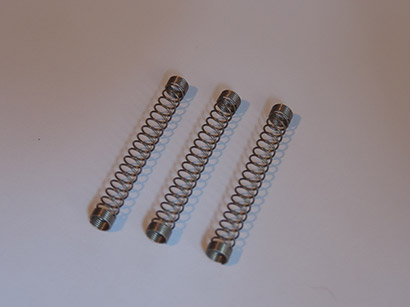

Our commitment to producing the finest quality precision springs makes RC Coil Spring a valued supplier to the medical industry. We manufactured the valve tee spring highlighted here using a manufacturing process that would ensure accurate and repeatable production of high volume quantities.
Fabricated from stainless steel, these springs featured dimensions of 1.450" in length x 0.135" I.D. Our high speed compression spring machine allowed fast throughput speeds while holding tolerances to ±0.05". Passivation in compliance with ASTM A967-96 Nitric 2 removed all surface contaminants and resulted in the desired low corrosion rate of the metal.
In process visual inspections in addition to micrometer measurements validated that we satisfied the requirements of the customer specification. Current production of this component is at the rate of 320,000 annually.
If you are interested in learning more about this project or the processes we used to manufacture it, contact us today.
Custom Stainless Steel Spring for the Medical Industry Project Highlights
- Project Name & Description
- Spring: Valve -Tee
- Capabilities Applied/Processes
- Equipment Used
- Compression Spring Machine
- Overall Part Dimensions
- Length: 1.450"
Inner Diameter: 0.135"
- Tightest Tolerances
- ± 0.005"
- Material Used
- 302 Stainless Steel
- Material Finish
- Passivation- ASTM A967-96 Nitric 2
- Industry for Use
- In Process Testing/Inspection Performed
- Visual Inspection, Dimensional Testing: Micrometer
- Delivery/Turnaround Time
- 4-5 weeks
- Delivery Location
- Tucson, AZ
- Standards Met
- Customer Specifications
