High Strength Steel Heat Sink Clip for the Electronics Industry

High Strength Steel Heat Sink Clips
High Strength Steel Heat Sink Clips

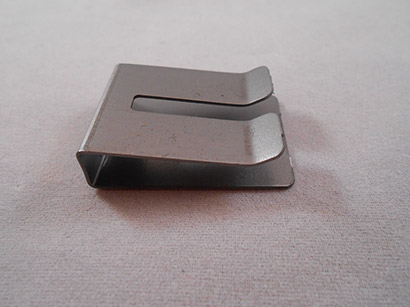

At RC Coil Spring, our facility houses a wide variety of equipment, which enables us to use the most expedient and cost effective means of producing any individual component. To manufacture the heat sink clip highlighted here, we chose our 4-slide press, which allowed us to complete all operations with minimal set up and handling.

Intended for use in an electronics application, we formed this part from 0.05 mm thick ultra-high strength cold rolled steel, Martensite M-130. Its uniform mechanical properties in both longitudinal and transverse directions allowed flexibility in design and enabled us to maximize material utilization. Featuring finished dimensions of 18 mm in length x 10 mm in width, our stable, predictable, and repeatable process allowed us to uphold ± 0.05 mm tolerances over an entire 500,000 unit production run. Black zinc plating and passivation, completed in accordance with RoHS directives, provided maximum corrosion protection.

In addition to dimensional inspections, quality assurance procedures involved bend tests to ensure the material possessed the ductility to resist cracking or other surface irregularities when stressed. We currently run production four times a year in half-million unit lots, and our end-to-end manufacturing capabilities allow us to ship finished product two weeks after setup.

To learn more about this project or if you have a similar one and would like a quote, contact us today.


High Strength Steel Heat Sink Clip for the Electronics Industry Project Highlights

Project Name & Description
Heat Sink Clip
Capabilities Applied/Processes
Forming
Plating
Passivation
Equipment Used to Manufacture Part
4-Slide
Overall Part Dimensions
Length: 18mm
Width: 10mm
Thickness: 0.5mm
Tightest Tolerances
± 0.005mm
Material Used
Ultra High Strength Cold Rolled Steel Martensite M-130
Material Finish
Black Zinc Plated and Passivated
Industry for Use
Electronics
In Process Testing/Inspection Performed
Bend Testing
Volume
20 Million/ 500,000 per release
Delivery/Turnaround Time
2 weeks per release after set-up
Delivery Location
San Diego, CA
Standards Met
Customer Specifications
RoHS Compliant Per Directive 2002/95/EC
